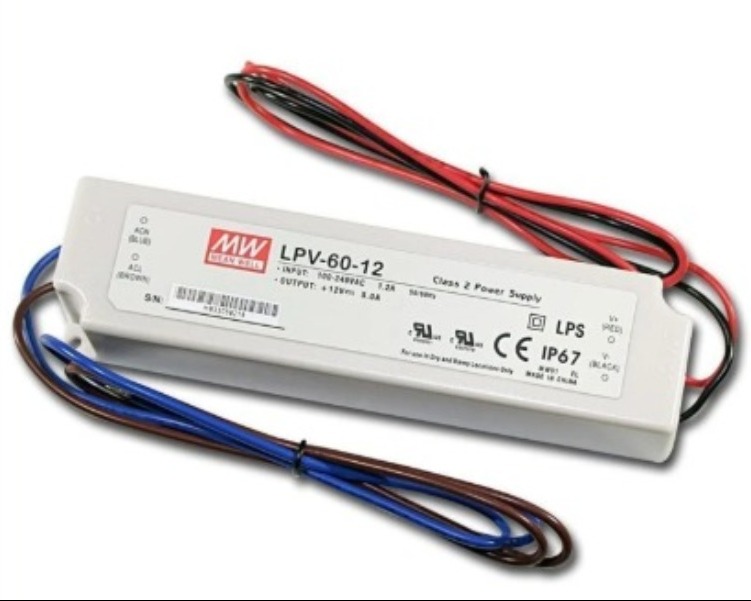

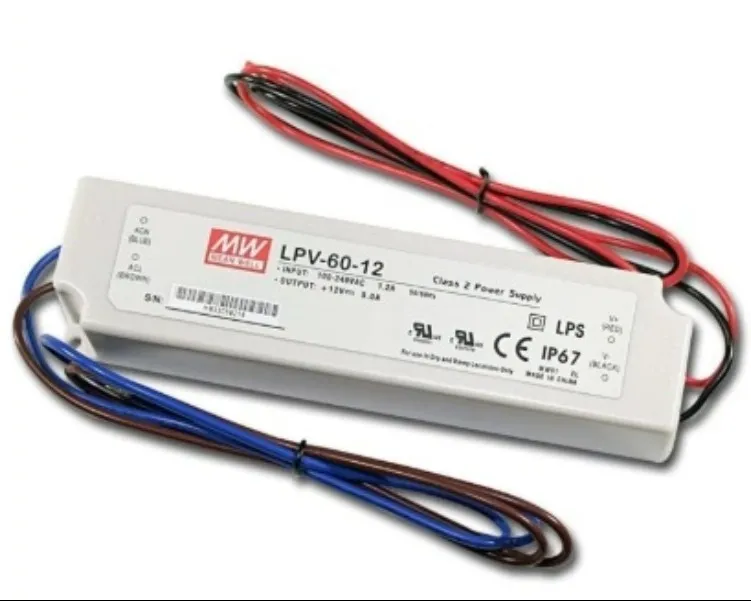

SMPS (Switched-Mode Power Supply)
Purpose: Converts AC mains power (230 V AC) into DC power (commonly 12 V DC or 24 V DC).
Applications: LED strip lights, CCTV systems, signage, control panels, and other low-voltage lighting.
Typical specifications:
Input: 100–240 V AC, 50/60 Hz
Output: 12 V DC or 24 V DC
Output current: 5 A, 10 A, 20 A, etc. (depending on load)
Built-in protection: Overload, short circuit, and overvoltage
SMC Box (Sheet Moulding Compound Enclosure)
Purpose: Houses and protects electrical components.
Features:
Weather-resistant and corrosion-resistant
Electrically insulated
Suitable for indoor and outdoor installation
Lockable door for safety
Available in various sizes
Panel Board
Purpose: Distributes and protects the electrical circuits.
Typical components:
Main MCB/Isolator
Distribution MCBs
Terminal blocks
Neutral and earth bars
Indicators (Power ON, Fault)
SMPS mounted inside (if supplying DC lighting)
Typical Lighting Panel Arrangement
Input Supply: 230 V AC
Main MCB: 16 A or 32 A
SMPS: 230 V AC to 24 V DC (or 12 V DC)
Output Protection: Individual MCBs or fuses for each lighting circuit
Output: LED lights, landscape lights, or decorative lighting
Applications
Street lighting
Garden and landscape lighting
Building façade lighting
Industrial lighting
Commercial complexes
Parking area lighting
This combination provides a safe, organized, and reliable power distribution system for low-voltage lighting installations. If you need a single-line diagram (SLD) or a wiring diagram for an SMPS panel used for lights, I can provide one.
